C8045P-25

Category : Zoomlion
Sub Category : Tower Cranes
SKU : C8045P-25

Excellent Performance Modular component design with strong versatility, high rigidity, minimal deformation, and long service life. High Safety Equipped with brake failure protection, anti-falling hook device, and stall protection. Includes a safety monitoring system, anti-collision system for multiple tower cranes, visual monitoring system, and remote cloud management platform. Upgraded Coating Powder coating for steel structures, electrophoretic coating for operator cabins, and hot-dip galvanizing for platforms and walkways. Easy operation Inverter + PLC control with a fully closed-loop system. Features include anti-speed positioning, load-adaptive speed control, and reverse driving prevention. Ergonomic Design Quick-assembly structure and anti-slip design for platforms and walkways.

Description
Features

Technical Parameter

Load characteristics

Jib（m）	Fall	Qmax（t）	Rmax（m）	15	20	25	30	35	40	45	50	55	60	65	70	75	80
80	2	16	5.7 ~ 35.1	12.50	12.50	12.50	12.50	12.50	10.71	9.31	8.19	7.29	6.54	5.91	5.37	4.91	4.50
80	4	32	5.7 ~ 18.5	25.00	22.78	17.38	13.88	11.43	9.61	8.21	7.10	6.19	5.44	4.81	4.27	3.81	3.40
75	2	16	5.7 ~ 37.7	12.50	12.50	12.50	12.50	12.50	11.65	10.14	8.94	7.97	7.16	6.48	5.90	5.40
75	4	32	5.7 ~ 19.8	25.00	24.74	18.93	15.16	12.51	10.55	9.04	7.85	6.87	6.07	5.39	4.80	4.30
70	2	16	5.7 ~ 40.6	12.50	12.50	12.50	12.50	12.50	12.50	11.08	9.79	8.74	7.86	7.13	6.50
70	4	32	5.7 ~ 21.3	25.00	25.00	20.67	16.59	13.73	11.62	9.99	8.69	7.64	6.77	6.03	5.40

Mechanisms

Mechanisms	Model			Rope (m)	Power (KW)

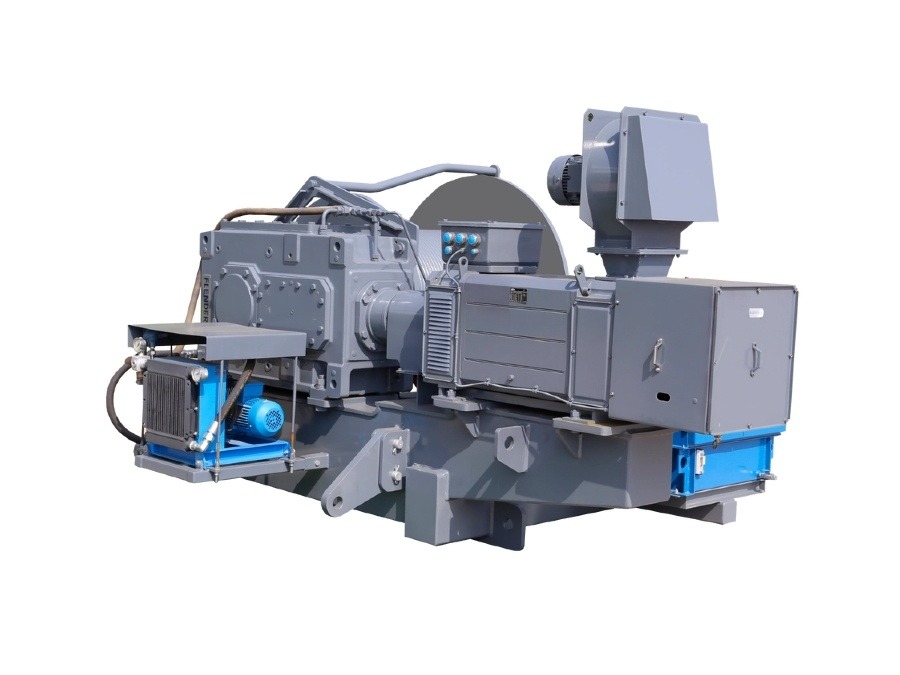

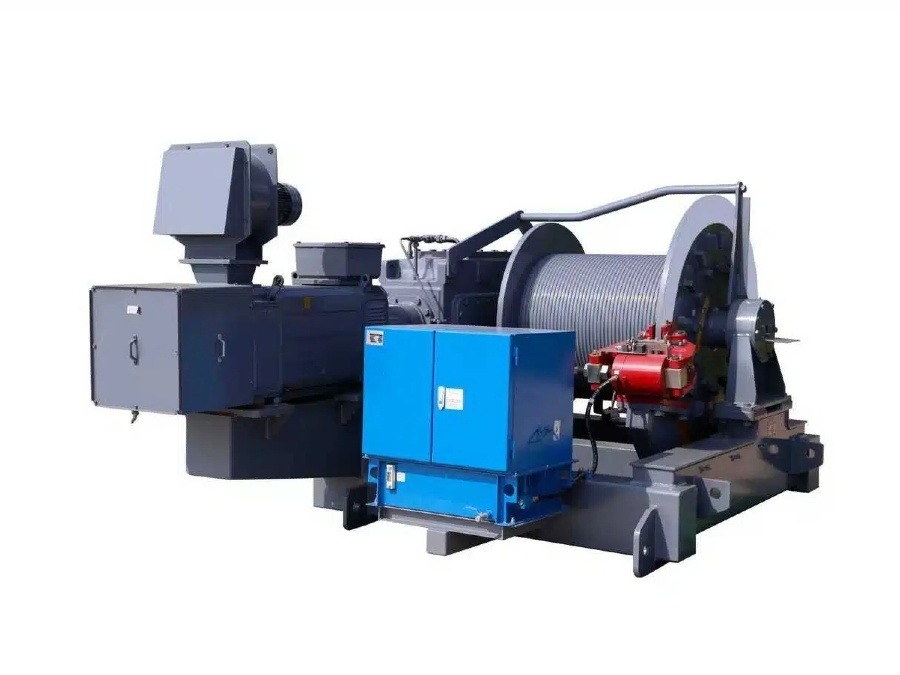

Hoisting	90JLF63 BDW2	m/min 38 → 76 → 100 t 12.5 6.25 3.125	m/min 19 → 38 → 50 t 25 12.5 6.25	813	90
Trolleying	M11JXF16C4	m/min 16.6 → 41.5 → 83			11
Slewing	F9JH18T5-C4 FB9JH18T5-C4	r/min 0 → 0.72			3×9

Tower Crane	C8045P-25
